En los
últimos meses hemos conocido varios errores cometidos en fachadas de edificios.
El último ha tenido lugar en un rascacielos de Londres capaz de reflejar la luz
y derretir hasta un vehículo.
El
arquitecto confesó que no se utilizaron en su diseño todas las herramientas
necesarias y que solamente estimaron que la temperatura sería de 32 grados,
siendo finalmente en algunos puntos de 72.
In recent months we
have known several mistakes made in building facades. The last one has
taken place in a London skyscraper able to reflect the light and melt even a
vehicle.
The architect confessed they didn´t use all the necessary tools in their design and only they just estimated the temperature would be
of 32 degrees, finally being in some points of 72.
Es
difícil de entender cómo se puede diseñar la piel de un edificio sin realizar
un estudio previo y sin tener en cuenta los diferentes factores que intervienen
en su diseño. La altura, la geometría o la orientación hacen de cada edificio
una obra diferente.
Simplemente
si se pararan por un segundo a pensar en el mismo significado de ‘piel’ todos
estos errores nunca habrían ocurrido: la piel cambia su espesor según la zona
que está protegiendo. Su
espesor varía entre los 0,5 mm (en los párpados)
a los 4 mm (en el talón).
Además actúa como barrera protectora que aísla al
organismo del medio que lo rodea, protegiéndolo y contribuyendo a mantener
íntegras sus estructuras, al tiempo que actúa como sistema de comunicación con
el entorno.
It’s difficult to understand how is it possible to design the skin of a
building without making a previous study and without taking into account the
different factors that take part in its design. The height, the geometry or the
orientation make each building a different work.
Simply if they would stop for a second to think about
the same meaning of 'skin' all these errors would have never happened: the skin
changes its thickness depending on the area that it is protecting. Its
thickness varies from 0.5 mm (on eyelids) until 4 mm (on heel).
In addition it acts as a protective barrier that
insulates the organism of the surrounding environment, protecting it and
helping it to keep intact its structure, at the same time it acts as
communication system with the environment.
Por
ejemplo si cogemos una mano, podemos encontrar en ella diferentes zonas, cada
una con un espesor diferente. Primero detectamos estos puntos y a continuación
trazamos las áreas que los envuelven ayudándonos de diferentes geometrías.
Detectados
estos puntos y áreas, utilizamos un esquema sencillo realizado a través del
diseño paramétrico para dar una volumetría a esta geometría.
Así podemos entender cómo es la respuesta de la piel en cada
punto de la mano que hemos analizado y ver cómo va cambiando de espesor según
la zona que está protegiendo.
For example if we take a hand, we can find in it
different zones, each one with a different thickness. First we detect these
points and then we draw the areas that surround them helping us with different
geometries.

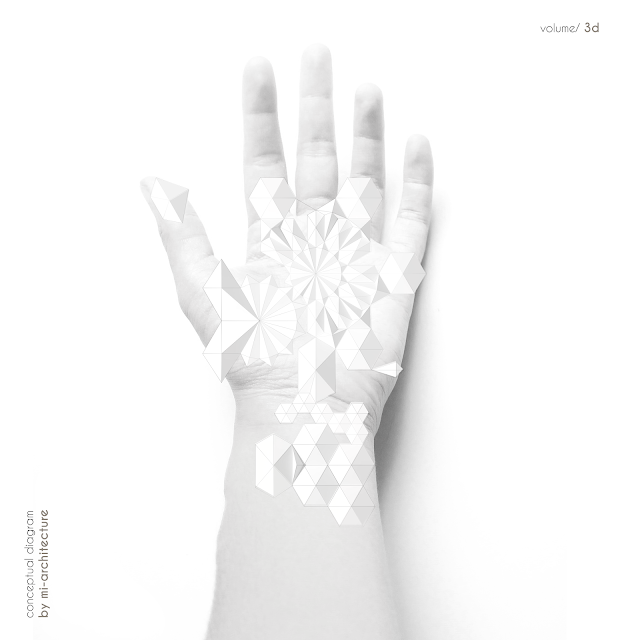

One detected these points and areas, we use a simple
scheme realized through parametric design to give volume to this geometry.
Thus we can understand how is the response of the skin
in each point of the hand that we have analyzed and see how its thickness
changes depending on the area that is protecting.
Este
artículo solamente quiere ser una llamada a la reflexión sobre la importancia
de la piel en la arquitectura. La piel no debería de ser nunca el último
elemento a tener en cuenta.
This article only wants to be a call for reflection
about the importance of the skin in architecture. The skin should not ever be
the last element to consider.
